In this tutorial learn about position , distance and displacement
View Video Transcript
0:00
in this video we will learn about
0:02
position distance and displacement in
0:06
our daily life we see lots of things
0:08
moving around us for example car passing
0:11
through from one place to another person
0:13
riding on a bicycle and many other
0:16
things in scientific term an object is
0:20
said to be in motion if it changes its
0:22
position with the passage of time and if
0:25
it does not changes its position with
0:28
the passage of time it is said to be at
0:30
rest no both motion
0:39
and rest are relative terms for example
0:51
a mobile kept on a table is resting at
0:54
its position but it is moving in the
0:56
sense as earth is rotating on its axis
0:59
so for a person seeing mobile from Earth
1:02
it is at rest and for personal moon
1:05
earth seems to change its position with
1:08
time and so mobile is also moving now
1:12
simplest case of motion is rectilinear
1:15
motion
1:26
which is the motion of an object along a
1:29
straight line
1:51
in our discussion of describing the
1:53
motion of an object we will treat the
1:56
object as a point object
2:05
check now object under considerations
2:08
can be treated as a point object if size
2:11
of the object is much smaller than the
2:13
distance traveled by eight in a
2:15
reasonable time duration for example
2:18
length of a motor car traveling a
2:20
distance of 500 kilometer can be
2:23
neglected with respect to the distance
2:25
travelled by it here in kinematics we
2:36
study is the ways to describe the motion
2:38
without going into the cause of motion
2:45
now first concept of kinematics we would
2:50
like to discuss is position
3:01
now to locate a position of a particle
3:04
in motion or at rest we need a frame of
3:08
reference now simplest way to choose a
3:19
frame of reference is to choose three
3:21
mutually perpendicular axis that can be
3:25
labeled as x y&z axis so let me draw
3:33
frame of reference
3:40
so this is a frame of reference and we
3:45
can level each of his three mutually
3:48
perpendicular axes as x-axis y-axis and
3:54
z-axis now such a system of labeling
4:00
position of an object is known as the
4:03
rectangular coordinate system
4:30
let a be the position of any point in
4:34
rectangular coordinate system and it can
4:36
be labeled as a x y and z so this
4:50
position is x here it is why
5:05
and this is Z at this point o is the
5:09
point of intersection of three mutually
5:11
perpendicular axis and is known as
5:14
region of frame of reference this point
5:18
Oh to measure the time we can also
5:24
attach a clock with this frame of
5:26
reference if any one or all of the
5:30
coordinates of the object under
5:32
consideration changes with time in the
5:35
frame of reference the the object is
5:38
said to be in motion with respect to
5:40
this frame of reference otherwise it is
5:43
said to be at rest with respect to this
5:47
frame of reference now for describing a
5:59
motion of particle in one dimension
6:15
we only need one off of the three
6:31
coordinate axis that is
6:48
that is we can either choose X Y or Z X
6:55
is for the description of motion of the
7:01
particle
7:16
No
7:19

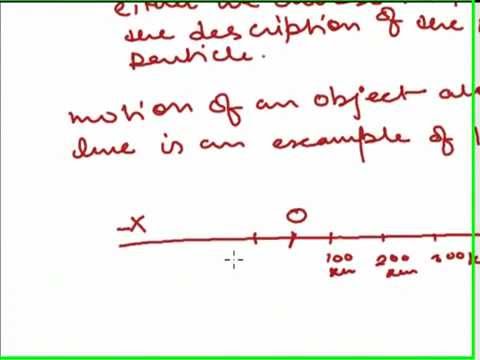

motion of an object along spirit line
7:30
a long straight line
7:38
is an example of motion in one dimension
7:48
one dimension motion a position of any
7:55
object can be measured with respect to
7:57
origin this as the line of motion of the
8:02
particle this is the origin from where
8:05
the particle starts this is suppose 100
8:08
kilometers 200 kilometers 300 kilometers
8:15
and so on this is positive x-axis and
8:19
here on the left hand side gate div
8:24
x-axis see this is minus hundred minus
8:31
200-300 and so on no
8:39
suppose a man walks along positive
8:45
x-axis at time T the man is at a
8:55
distance hundred kilometer fall from the
8:58
region at t1 it is at 200 kilometers and
9:01
so on so we can measure position
9:14
awful man walking
9:22
along positive x-axis with the passage
9:31
of time
9:38
naw positions on the right hand side of
9:42
the region has positive values and on
9:47
that of the left hand side of the origin
9:50
has negative values now after describing
9:56
the position of an object we will not
10:01
define the distance and displacement
10:20
no I will first draw my figure or to
10:27
describe the distance and displacement
10:31
of an object
10:51
now this graph shows an object is is
10:54
that position p at time t1 and it would
10:59
position are at time t2 in the time
11:05
interval from t1 to t2 particle has
11:09
traveled path P Q R and length of the
11:13
path P Q R is the distance travelled by
11:17
the object in the time interval t1 to t2
11:22
now we connect the initial position of
11:26
the object beam with its final position
11:28
are through a straight line so let me
11:35
draw connect the line now i have
11:42
connected this loud this point p and r
11:46
through a state line and this straight
11:51
line is the displacement
12:02
of the object so this placement of the
12:05
object has both magnitude
12:13
and direction
12:24
so since the displacement of the object
12:28
has both magnitude and direction it is a
12:32
vector quantity
12:40
now magnitude of a displacement vector
12:43
is equal to the length of straight line
12:46
joining initial and final position and
12:49
its direction points from the initial
12:51
position of the object towards the final
12:55
position of the object in contrast to
12:59
displacement distance is a scalar
13:07
quantity
