This tutorial is about electric field lines
View Video Transcript
0:01
this tutorial is about electric field
0:03
lines now field line gives the
0:05
geometrical description of electric
0:08
field to understand the concept of
0:11
electric field let us consider a single
0:14
point charge
0:15
Q situated at the
0:23
origin now electric field due to this
0:26
charge Q would be
0:31
a = 1
0:33
upon 4
0:37
piil q upon
0:40
r² R
0:45

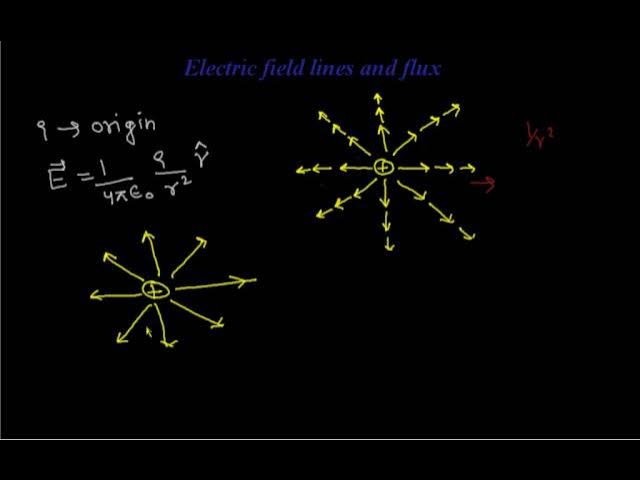

cap now we can now draw Vector pointing
0:49
along the directions of electric field
0:51
with length of these vectors
0:54
proportional to the field at each point
1:02
so let us
1:05
draw these vectors
1:09
along each possible
1:15
Direction now since electric field Falls
1:18
of like 1 upon r² this Vector goes
1:22
shorter and shorter as we goes away from
1:24
the origin pointing in a radially
1:26
outward Direction now if we connect a
1:30
these Vector to form a line we get a
1:32
nicer way to represent this field and
1:35
thereby forming the field lines that is
1:39
what we have to do
1:44
is connect these
1:48
vectors to
1:50
form field lines
2:00
now the magnitude of field is indicated
2:02
by density of these field lines and the
2:06
magnitude is stronger near the center
2:09
where the field lines are closer
2:11
together and it becomes weak as we moves
2:15
outwards as field lines are relatively
2:18
apart at outer points so we can now
2:21
conclude that electric field lines
2:25
are imaginary line
2:36
that are drawn in such a way that its
2:39
direction at any point is same as the
2:42
direction of field at that point now
2:46
electric field of a single negative
2:48
charge would point in a radial inward
2:53
Direction terminating at the charge now
2:58
in general for a configuration of
3:00
charges and electric field lines is a
3:03
curve drawn in such a way that tangent
3:06
to it at any point is in the direction
3:09
of the net field at that
3:12
point so we have seen how to draw field
3:14
lines for a single positive and a
3:17
negative
3:18
charge we can also draw field lines
3:21
around a system of two positive charges
3:25
and this
3:28
figure shows the electric field
3:37
lines due to two
3:40
positive
3:43
charges and from this figure we can see
3:47
that field lines along a system of two
3:49
positive charges describe the mutual
3:52
repulsion between these two charges and
3:55
this figure shows the electric field
3:57
lines due to a positive and a negative
4:00
charge and from this we can clearly see
4:04
that electric field lines around the
4:07
system of a negative and a positive
4:09
charge describes the mutual interaction
4:12
between these two
4:13
charges now some important General
4:16
properties of field lines
4:19
are field lines start from positive
4:26
charge and end on a negative charge
4:37
now two field lines
4:40
never cross each
4:48
other because if they do so then at the
4:52
point of interaction there will be two
4:54
direction of electric fields which is
4:58
impossible now electric field lines
5:01
never pass through a
5:07
conductor and this shows that electric
5:09
Fields inside the conductor is always
5:13
zero
5:15
and electric field lines are always
5:19
continuous
5:25
curve in a charge free region
5:30
sh
